WFO

Introduction

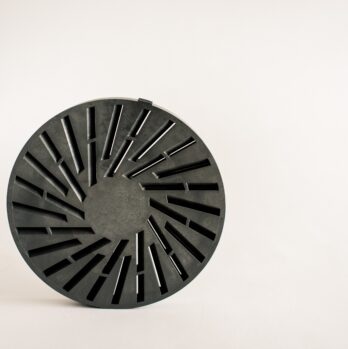

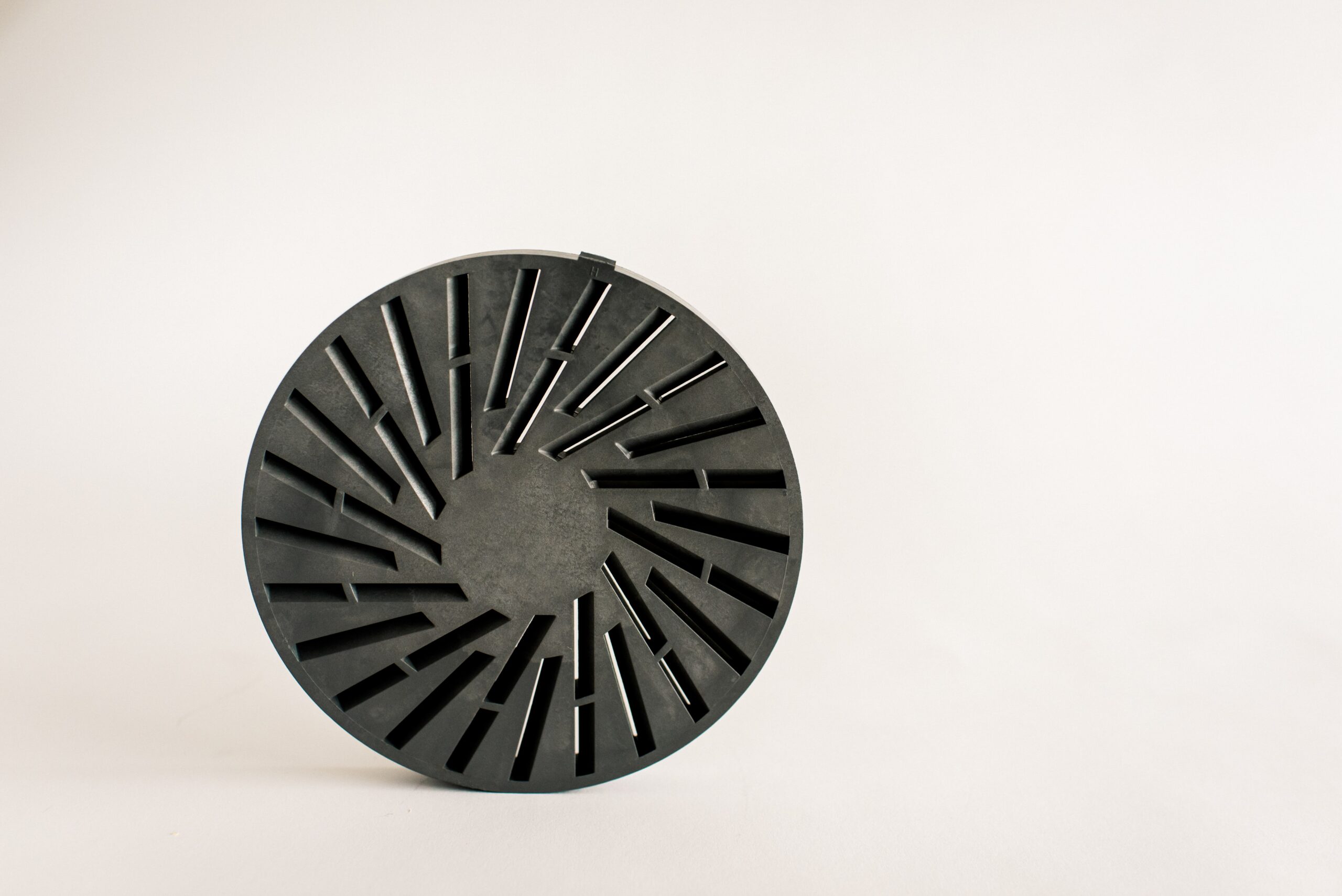

The WFO floor grille, made of polycarbonate, is unique due to its reversible inner disc that offers both horizontal and swirling air discharge options. This functionality provides adaptability in airflow direction while maintaining a low noise level due to excellent aerodynamic properties.

Features

• Multifunctional: Suitable for the supply and exhaust of isothermal, cooled, and heated air.
• Flexible Installation: Can be installed in both system floors and concrete floors.
• Adaptability: Offers both horizontal and swirling air outlets.
• Durability: The grille can withstand a maximum point load of 500 kg.
• Ease of Installation: Installation with a mounting ring makes it simple.
• Material: Fully made of plastic, making it lightweight yet robust.

Product Description

• WFO: Basic grille for mounting in raised floors from 23 to 50 mm thick.
• WFOS: Grille with a metal passage sleeve for secure attachment.
• WFOP: Grille with a steel air supply plenum for integrated air distribution.
• WFOD: Designed as an inset grille for a seamless fit.

Technical Data

• Diameters: Offers a variety of openings and external diameters to meet the needs of different floor types.
• Finish: Standard in gray plastic (RAL 7037), with the option for other colors for large orders.

The WFO grille combines aesthetic versatility with functional superiority, making it suitable for a wide range of commercial and residential applications
